Due to the growing need for high purity gases in industries, Air Separation Units (ASUs) are now a necessity. They offer a cost-effective means of generating the required purity of oxygen, nitrogen, and argon in large quantities. Compared to other methods of supplying gas, cryogenic air separation is more efficient, costs less per unit of gas, and is more adaptable for large scale production.
But what is an ASU, how does it work, and why is it relevant in various fields? In this article, we will focus on how they work, what they are made of, and where they are used in the industry.
What is an Air Separation Unit (ASU)?
An Air Separation Unit, or ASU, is an industrial plant that is used to separate the individual gases from the air. Air, which may be considered as a pure substance, is actually a mixture of gases, mainly nitrogen, oxygen and argon, and a few other gases.
The ASU’s primary function is to demix this mixture into its components. This is not just for academic purposes; the outputs – nitrogen, oxygen, and argon – are essential ingredients for a wide range of industrial applications. Nitrogen is used as an inert gas in the chemical and electronics industries, oxygen is used in combustion and medical industries, and argon is used in welding and lighting industries.
The ASU is therefore, not just a piece of equipment, but a fundamental technology that supports many industries of the contemporary economy. It is a fundamental input for industries as diverse as steelmaking and health care, converting the air into valuable industrial products. It is important to understand the ASU in order to understand the backbone of many manufacturing processes in the present world.
ASU Key Technologies & Principles Explained
Air Separation Units use thermodynamics and materials science principles, primarily via cryogenic distillation, managing low-temperature cycles enhanced by the Joule-Thomson effect to efficiently liquefy air for gas separation.
However, cryogenic distillation is still the most common method of air separation even though there are other methods like membrane separation and adsorption processes. It is the most efficient and widely used for large scale and high purity separation requirements.
Cryogenic Distillation Principle
Cryogenic distillation is the most common working process of most Air Separation Units. This method relies on the differences in boiling points of the main constituents of air.
After the air has been cooled and compressed, it is then fed into distillation columns. These are very tall and specialized structures that are used for fractional distillation purposes. Nitrogen being the first to vaporize due to its low boiling point rises in the column while the other components remain at the base. Oxygen, which has a higher boiling point, stays in the liquid state and is collected at the bottom. Argon, which is present in a lesser amount, is usually collected from a middle section of the column.
The separation process is not a one-step process but a process that involves the process of vaporization and condensation in the column. It is possible to envision a counter-current flow regime where vapor and liquid phases interact, enriching the desired components at different levels.
Temperature and pressure gradients within these distillation columns must be controlled to the necessary levels to achieve the desired purity of the separated gases. Cryogenic distillation is therefore a more advanced and efficient way of separating gases from air with high purity.
Joule-Thomson Effect in Cooling
The cooling of the gas to cryogenic temperatures within an ASU is mainly based on the Joule- Thomson effect. This thermodynamic principle refers to the change in temperature of a real gas or vapor when it is passed through a valve or a porous plug and all the heat is prevented from being transferred to the surroundings.
In particular, when a compressed gas is allowed to expand freely, it cools down. This cooling effect occurs because, in real gases there are intermolecular forces. Effort has to be made to counter these attractive forces as the gas expands and this energy is derived from the internal energy of the gas and hence the decrease in temperature.
In ASU systems, the Joule-Thomson effect is used in a very effective manner in cooling cycles. The compressed air is then passed through an expansion device such as a valve or a turbine. This expansion results in a considerable decrease in temperature. The cooled gas is then used to pre-cool the incoming compressed air in a heat exchanger to form a regenerative cooling loop. This process of expansion and heat exchange is done in a cyclic manner and the temperature is reduced to the point where liquefaction is achieved and the final products are liquid oxygen and liquid nitrogen.
The Joule-Thomson effect is, therefore, a critical component of cryogenic technologies, which are used to liquefy air for further separation.
Key Components in ASU Systems
An ASU is made up of several systems that are integrated to work as a single unit.These are air compressors for pressure increase, pre-cooling for temperature decrease, and molecular sieves for purification. Distillation columns are essential for the separation of gases while liquefiers are used to keep the gases at cryogenic temperatures.
These integrated and controlled components make it possible to separate air into nitrogen, oxygen, and argon of high purity which are essential for ASU operation.
| Component | Function | Importance |
| Air Compressor | Compresses air to high pressure | Essential for liquefaction, multi-stage design improves efficiency |
| Pre-Cooling System | Reduces air temperature before liquefaction | Prevents overloading the cryogenic cooling stage |
| Molecular Sieve Purification System | Removes water, CO₂, and hydrocarbons | Prevents ice and solid deposits that can block equipment |
| Cryogenic Distillation Column | Separates oxygen, nitrogen, and argon | Core of ASU, determines final gas purity |
| Liquefier | Maintains low temperatures to liquefy air | Uses refrigeration cycles to sustain cryogenic conditions |
Air Compressor and Pre-cooling
The air compressor is the first and the most basic part of an ASU. Its purpose is to suck in air from the environment and compress it to the high pressures necessary for the cryogenic liquefaction process. These are mostly multi-stage industrial compressors that are built for constant and effective use. However, the compression process itself increases the temperature of the air as heat is produced during the process. This hot compressed air is not good for cryogenic processing of the material. Thus, a pre-cooling stage is inevitable.
Pre-cooling systems are used to cool the compressed air to a lower temperature using mechanical refrigeration and heat exchangers before it is cooled in the cryogenic section. Pre-cooling has several important functions: it reduces the cooling load on the cryogenic refrigeration system, enhances the efficiency of the subsequent liquefaction process, and, most importantly, it helps to eliminate a significant part of water vapor contained in the intake air. It is important to remove water vapor at this stage to avoid formation of ice in the extremely cold sections of the ASU which may cause blockages and operational interferences. The air compressor and pre-cooling system, working in tandem, prepare the air stream for the delicate and energy-intensive cryogenic separation stages that follow.
Molecular Sieve Purification System
Effective air separation at cryogenic temperatures necessitates meticulous purification of the incoming air stream. Air as a source of nitrogen, oxygen, and argon contains not only useful components but also unwanted admixtures such as water vapor, carbon dioxide, and hydrocarbons. These contaminants if not removed would precipitate at cryogenic temperatures, which would cause operational issues such as blockages within the equipment, poor heat transfer and product quality.
The molecular sieve purification system is designed to meet this important need. It employs specific molecular sieve adsorbents (4A, 5A, 13X, etc.) to selectively adsorb these impurities. These materials are selected due to their well-defined pore size that can selectively filter at the molecular level. This enables them to capture water molecules, carbon dioxide and hydrocarbons while allowing the other components of air to pass through freely.
ASU purification systems usually have a number of adsorbent beds that work in a cyclic manner, and this is done using Pressure Swing Adsorption (PSA or VPSA) or Temperature Swing Adsorption (TSA). This cyclical operation makes it possible to have a highly effective removal of contaminants all the time. The molecular sieve purification system is very important for the long-term operation of the ASU and for achieving the required purity of the separated gases, which in turn results in high purity gases. Hence, there is a need to ensure that the proper and effective molecular sieve purification system is put in place for the best and reliable ASU performance.
Why choose Jalon Molecular Sieves?
When it comes to the crucial molecular sieve purification stage in Air Separation Units, Jalon molecular sieves stand out as the intelligent choice. As a leading molecular sieve adsorbent manufacturer, Jalon provides materials specifically engineered to meet the rigorous demands of ASU systems.
Our molecular sieves offer exceptional capacity for water vapor, carbon dioxide, and hydrocarbon removal, ensuring ultra-high gas purity and preventing system fouling. With over 20 years of industry experience, 112 registered patents, and ISO 9001 & ISO 14001 international quality certifications, Jalon is a trusted partner in ASU purification.
We provide customized molecular sieve solutions tailored to ASU operations, ensuring stable purification performance, consistent gas quality, and efficient contaminant removal.
Partner with Jalon, and you’re investing in the heart of your ASU’s purification system—ensuring superior performance, efficiency, and long-term operational stability.
Distillation Columns and Liquefiers
Distillation columns are the core of an ASU since this is where the actual separation of the liquefied air takes place. These are not just simple channels but complex engineering designs, which may contain trays or structured packing to ensure that the vapor and liquid phases come into contact effectively for the purpose of separation.
Liquefiers are part of the integrated equipment that operate in tandem with the distillation columns. Their main purpose is to sustain the low temperatures required for distillation and to keep the air constantly in the liquid state. Liquefiers employ the use of refrigerants and expansion cycles to remove heat from the system and ensure that the distillation columns are at the right low temperatures. In these columns, the separation process is controlled by temperature and pressure gradients that are maintained within the column. Nitrogen being more volatile evaporates and moves up the column while oxygen and argon with higher boiling points condense and move down.
The specifications of the distillation columns and liquefiers are critical in determining the efficiency of the separation process and the purity of the separated gases. They are the key technology that converts liquefied air into valuable, high purity industrial gases.
Diverse Industrial Applications of ASU
The gases generated by ASUs are not niche products; they are basic requirements in a broad range of industries and are involved in almost all aspects of the contemporary world. The applications are numerous and essential, and many of them demand the use of a significant amount of oxygen.
In steel manufacturing, oxygen from ASUs helps in improving the combustion efficiency of furnaces. The chemical industry relies on ASU-derived nitrogen for inert atmospheres and as a reactant in processes like ammonia production. Healthcare requires medical oxygen for patients’ treatment and care. Apart from these, ASUs are useful in electronics manufacturing, food processing and in many other industries such as power plants where oxygen can improve combustion efficiency and decrease emissions in some technologies like gasification.
From large-scale manufacturing to intricate operations in the healthcare field, ASU technology is essential, as the processes it supports are crucial to the contemporary industrial world.

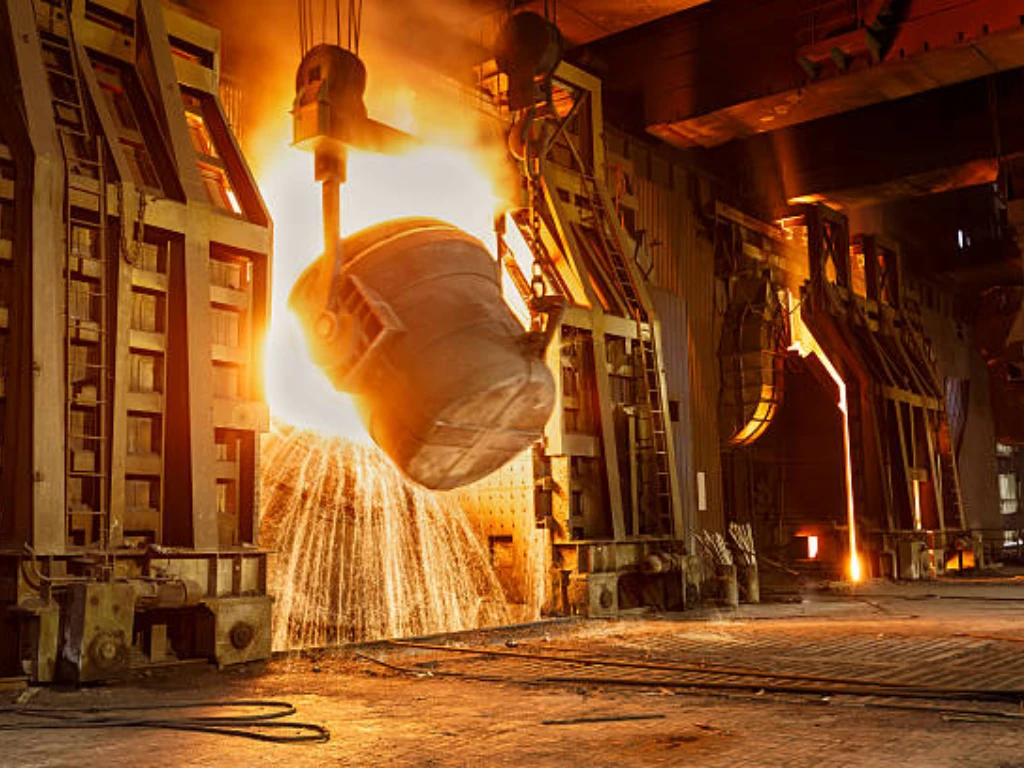

ASU in Steel Industry
The steel industry is one of the most important industries of the modern world and is one of the largest consumers of Air Separation Unit products. Oxygen, which is the major ASU product for steelmaking, is useful in increasing the efficiency of blast furnaces and basic oxygen furnaces. Supplementing these furnaces with high purity oxygen increases the combustion rate and, therefore, the rate of steel production and a decreases in the amount of fuel used per ton of steel. This not only speeds up the process of steelmaking but also decreases the cost of production making it more economical and environmentally friendly.
In addition, nitrogen generated from ASUs is used in steel industries for inerting and purging purposes to avoid any form of oxidation during the process of steel making and handling. ASUs and the steel industry are mutually dependent: ASUs supply the oxygen that is required for efficient steel making and on the other hand the large scale of the steel industry creates demand and need for the development of ASU technology.
ASUs are, in fact, strategic assets for the contemporary steel industry as they enable the manufacture of this vital engineering material.

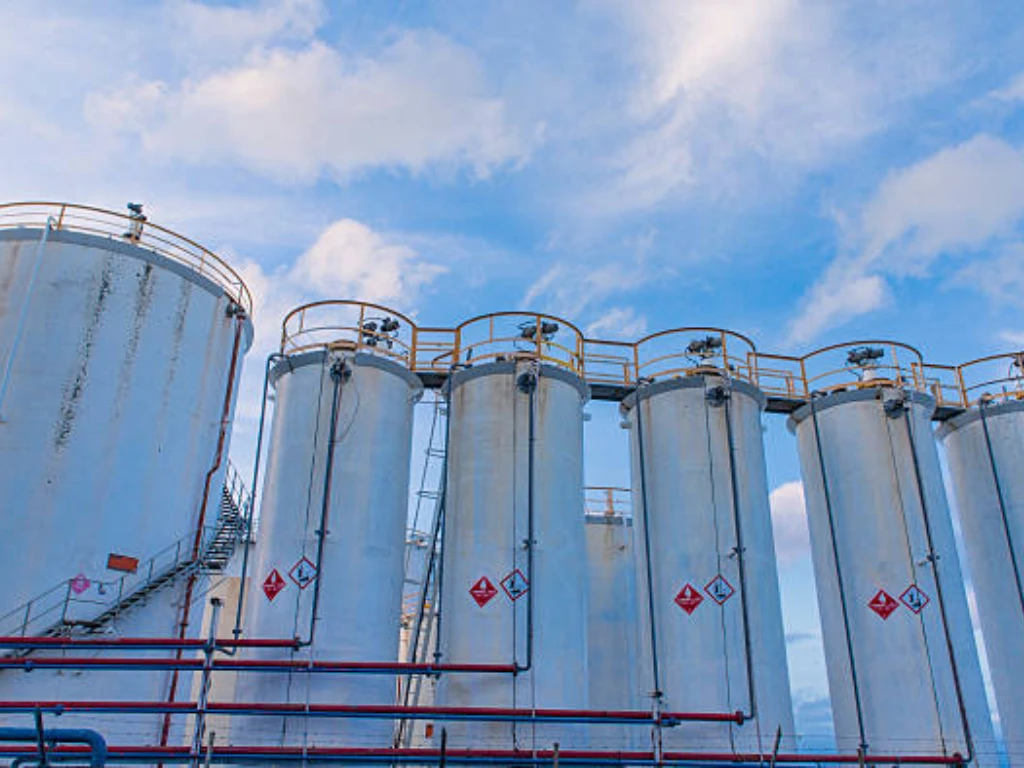

ASU in Chemical Industry
The chemical industry is a highly sensitive industry that involves many chemical reactions and therefore requires the inerting and reactive properties of gases generated by the Air Separation Units. Nitrogen which is the most common gas that is separated by ASUs is a critical element in safety and process control in chemical manufacturing industries. It is used as an inert blanketing gas to avoid reactions with oxygen or moisture in storage tanks, pipelines, and chemical reactors. This inert atmosphere is especially important in the handling of flammable, explosive or oxygen sensitive chemicals to provide safe production and storage conditions.
Apart from inerting, oxygen from ASUs is used as a reagent in various chemical synthesis processes including oxidation reactions in large scale chemical production and oxidation steps in fine chemical and pharmaceutical industries. This is because in the chemical industry, the purity and reliability of the gas supply from ASUs must be very high since even minor impurities can upset chemical equilibrium and affect the quality of the final product.
From improving safety measures to facilitating intricate chemical reactions, ASU gases are versatile instruments that are crucial to chemical engineers and the chemical industry.
ASU in Healthcare
In the healthcare sector, ASUs are no longer just industrial tools; they are life-sustaining facilities that deliver medical-grade oxygen required for the treatment of patients and for ventilations. Hospitals, clinics, and other medical facilities require a constant and high purity of oxygen for various uses in their operations. These are respiratory therapy for patients with pulmonary disorders, anesthesia during surgeries, oxygen incubators for neonates, and cardiopulmonary resuscitation.
Medical oxygen generated by ASUs is further purified and tested to meet the required standards of pure oxygen for human respiration, which is usually at 99.5% or above to ensure that the patients are safe and that the oxygen is effective in the treatment process.
Apart from oxygen, nitrogen from ASUs is used in the preservation of biological specimens such as blood and tissue, and in some surgical operations. The continuous and consistent availability of medical oxygen produced by ASU is mandatory in healthcare facilities; any interruption may lead to adverse effects on patients’ conditions. ASUs in healthcare are usually built with backup systems to operate around the clock, 365 days a year, as unseen protectors of respiratory health in healthcare facilities across the world.
Optimizing ASU Performance: Key Factors
Optimal ASU performance hinges on several key factors. They include: Purity and Flow Rate Demands, Energy Efficiency and Cost, and Molecular Sieve Selection. These factors must be optimally managed to enhance the effectiveness of ASU and its economic value.
Purity and Flow Rate Demands
The operating conditions and design characteristics of an Air Separation Unit are primarily determined by the level of purity and the flow rate of the applications that the unit is to serve. For example, medical oxygen applications require very high purity levels of oxygen, often above 99.999% with specific regulatory limits on the impurities allowed. To meet these high purity requirements, additional and possibly more energy-consuming purification steps and distillation stages are required in the ASU, necessitating a very tight integration of heat exchangers for optimal performance.
On the other hand, some industrial uses, for example, nitrogen for inert blanketing, may require lower levels of purity, which may enable the use of simpler and less energy-intensive separation techniques. Likewise, flow rate requirements are also different based on the size of the end-use application. A large integrated steel mill will need a huge and steady amount of oxygen and therefore large capacity ASUs while a small research laboratory may only need a small amount of high purity nitrogen.
Hence, it is important that the exact definition of the purity and flow rate requirements are clearly defined at the onset of ASU design and operation. This means that the ASU output is fine-tuned to the needs of the end-user, thus excluding the possibility of over-engineering and possible performance issues.
Energy Efficiency and Cost
ASU, by their very design require a large amount of electrical energy to drive the compression process. The process of air liquefaction and distillation requires low temperatures, which are achieved by using a large amount of energy for air compression and refrigeration. Thus, energy efficiency is not just an environmental factor for ASU operators; it is a business necessity that affects the bottom line. Reducing energy consumption is equal to cutting costs and increasing the competitiveness of the company.
There are many engineering solutions that are used to enhance the energy efficiency of ASU. These include improving the characteristics of air compressors, using heat recovery systems to capture waste heat from different processes and reuse it, using better and more efficient refrigeration cycles, and using energy efficient components in the ASU plant.
In addition, new developments in ASU process design, including the coupling of process steps and optimization of distillation column designs, help to minimize the overall energy consumption. The constant demand for improvement of energy efficiency in ASU technology is due to the economic benefits and the growing concern for the environment and the stricter standards that regulate energy consumption in industries. It is a continuous process of improvement that seeks to enhance the efficiency of ASU technology in a bid to reduce the costs of production in the future.
Molecular Sieve Selection
The selection of the appropriate molecular sieve adsorbent for the purification system of an Air Separation Unit is a decision with significant implications for ASU performance, operational reliability, and overall operating costs. Different types of molecular sieves exhibit variations in adsorption capacity, selectivity for specific contaminants (water vapor, carbon dioxide, hydrocarbons), and regeneration characteristics.
Selecting the optimal molecular sieve type and grade for a specific ASU installation requires careful consideration of factors such as the composition of the ambient air intake, the desired purity specifications of the separated gases, and the specific operating conditions of the purification system.
A judiciously chosen molecular sieve will not only ensure efficient and reliable removal of target contaminants, preventing system fouling and maintaining product gas purity, but also contribute to extended adsorbent lifespan and reduced energy consumption during regeneration cycles.
Conversely, a suboptimal molecular sieve selection can lead to diminished purification efficiency, increased operational downtime due to fouling, elevated energy costs associated with more frequent regeneration, and ultimately, compromised product gas quality. Therefore, molecular sieve selection is not a routine decision but a strategic engineering consideration that directly impacts the long-term operational success and economic performance of ASU facilities.
Advancements & Future of ASU Technology
The field of Air Separation Unit (ASU) technology is evolving rapidly, driven by increasing demands for efficiency, sustainability, and new applications. Future ASU systems will be more energy-efficient, integrating advanced materials, optimized process designs, and intelligent control systems to minimize energy consumption and maximize gas recovery.
Modular and smaller ASUs are gaining traction, allowing on-site gas production for smaller-scale applications and remote locations. Additionally, digitization and AI-driven ASU operations are enhancing efficiency, with smart sensors, data analytics, and predictive maintenance systems ensuring optimal performance and reduced downtime.
Continued improvements in molecular sieve technology are also contributing to ASU advancements. Molecular sieves play a critical role in ASU purification, ensuring high gas purity by effectively removing contaminants. Currently, researchers are actively developing more selective and efficient molecular sieves to enhance adsorption capacity, extend lifespan, and reduce energy costs. If you’re looking to drive innovation in ASU purification, partnering with Jalon can support the development of next-generation molecular sieves, enhancing performance and sustainability.
Beyond traditional applications, ASU technology is expanding into hydrogen energy production and carbon capture, utilization, and storage (CCUS), playing a crucial role in decarbonization and the transition to a more sustainable energy future. As industries worldwide continue to rely on high-purity industrial gases, the future of ASU technology remains bright—offering more efficient, versatile, and impactful solutions for a rapidly evolving world.
